Hydronix

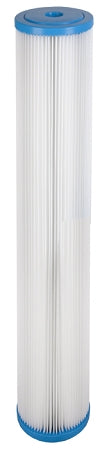

5 Micron Pleated Polyester Sediment Filter - 2.5 x 20

5 Micron Pleated Polyester Sediment Filter - 2.5 x 20

Regular price $14.99
Regular price Sale price $14.99
Sale Sold out
Shipping calculated at checkout.

Hydronix SPC-25-2005 5 Micron Pleated Polyester  2.5" x 20" Graded-Density Sediment Depth Filter

  • Manufactured from 100% Pure Polypropylene
  • Graded density for higher dirt holding capacity
  • 5 Micron Nominal Filtration

These 2.5" x 20" Pleated Polyester cartridges have true multi-stage depth filtration integrated into their design. Utilizing four (4) separate layers of micron filtration, outside-in flow allows the outer layers to trap larger-sized particles, resulting in much lower pressure drop compared to conventional filters.  Trapping various sized particles layer-by-layer, providing a much higher dirt holding capacity than standard spun polypropylene and string wound cartridges. Ideal for Point-of-use (POU) and reverse osmosis applications. These cartridges can be used in a wide range of applications such as residential, food service, commercial and industrial.

Specifications:
  • NSF Standard 42 Component Certified
  • Diameter - 2.5"
  • Length - 20"
  • Initial Flow Rate: 0.4 psi @ 14 GPM
  • Micron Rating - 5 micron
  • Maximum Operating Temperature:  145°F (63°C)
  • Maximum Pressure Drop: 69°F (20°C) 46.4 psi (3.2 kg/cm2)
  • Recommended replaceable pressure drop: 21.75 PSI (1.5kg/cm2)
  • Operating Temperature: 40 Degrees F to 145 Degrees F
